In the packaging fields of pharmaceuticals, medical devices, electronic components, and high-end daily necessities, the cardboard-blis​ter (Blister+Cardboard) composite packaging has become one of the most widely used formats due to its excellent display properties, strong sealing, and tamper-evident features. The core equipment that realizes this packaging process is the blis​ter heat sealing machine.

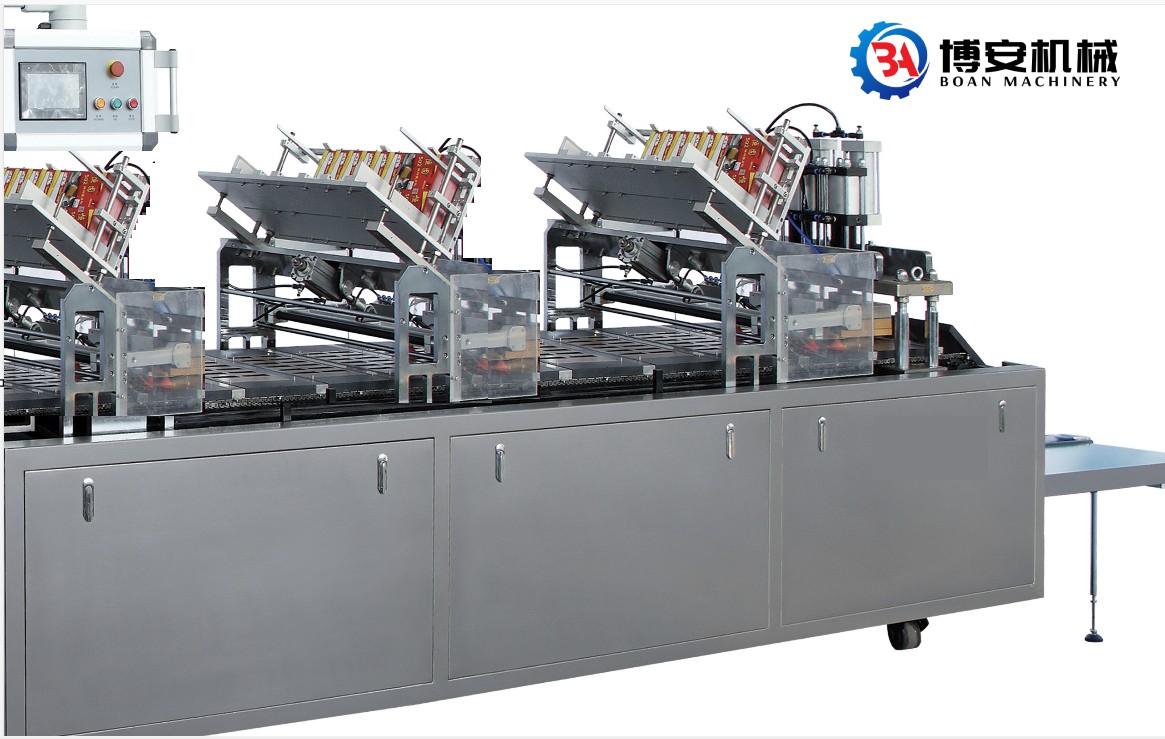

Recently, the author reviewed the technical documentation for the BA-500Z automatic blis​ter sealing machine. This equipment adopts a structure where the blis​ter is sandwiched between two layers of cardboard and features a fully automated process flow. This article takes the BA-500Z as a starting point, integrating current mainstream market trends, to analyze the equipment from multiple dimensions, including process principles, structural composition, technical parameters, selection key points, and common troubleshooting, providing a reference for packaging equipment selection and process optimization.

I. Process Principle: The Dual-Interface Fusion Mechanism of Heat Sealing

The technical essence of a cardboard-blis​ter sealing machine is the synergistic effect of heat and pressure, causing the heat-seal layer of the plastic blis​ter (typically PVC, PET, or RPET) to melt and bond with the coating on the cardboard surface (usually hot-melt adhesive or a PE coating).

Based on the heat source type, the mainstream technical routes can be divided into two categories:

1. High-Frequency (Radio Frequency) Welding: Suitable for PVC materials, it utilizes a high-frequency electric field to cause intense movement of polar molecules, generating heat. This results in fast heating and high energy efficiency.

2. Impulse Heating/Constant Temperature Heating: Suitable for materials like PET and RPET, it conducts heat through electric heating tubes or plates. It offers high temperature control precision and is suitable for precision heat sealing of multi-layer composite materials.

The process adopted by the BA-500Z belongs to the double-cardboard sandwich structure, i.e.,: Bottom cardboard → Place the pre-filled blis​ter → Top cardboard → Heat sealing. The advantages of this structure are:

• The blis​ter is completely encased by the cardboard, providing better edge sealing.

• The product display area is large, suitable for high-end consumer goods packaging.

• The cardboard can be printed with complete product information and anti-counterfeiting markers.

II. Analysis of BA-500Z Structure and Workflow

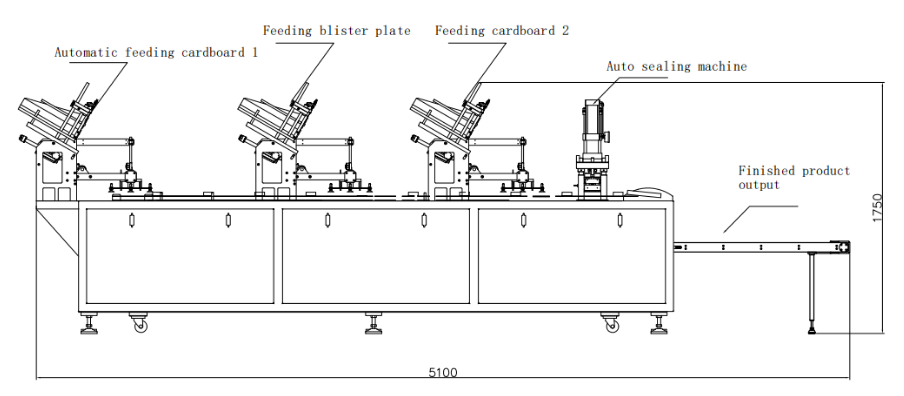

Based on the equipment documentation, the BA-500Z is a turntable-type or continuous platen-type fully automatic machine. Its workflow can be summarized into five stations:

1. Station 1: Automatic Bottom Cardboard Feeding
   Cardboards are automatically picked from the magazine and positioned onto the mold. The precision of the feeding mechanism directly affects the accuracy of subsequent blis​ter positioning.

2. Station 2: Automatic Pre-filled Blis​ter Feeding
   Blis​ters are typically formed and filled by a preceding blis​ter forming machine and then transferred to this machine via conveyor belt or manipulator. High alignment accuracy between the blis​ter and the cardboard is required here.

3. Station 3: Automatic Top Cardboard Feeding
   The second layer of cardboard covers the blis​ter, forming the "sandwich" structure.

4. Station 4: Heat Sealing Station
   The upper and lower heating plates close, maintaining contact for a set time under specified temperature and pressure, causing the blis​ter edges to melt and bond with the two cardboard layers.

5. Station 5: Automatic Finished Product Output
   Finished products are discharged via a conveyor belt, which can be linked to subsequent cartoning machines or palletizers.

Throughout this process, the servo motor drive system (BA-500Z servo power 0.75kW) ensures synchronization and positioning accuracy for each station's actions, while the 4.5kW heating power ensures rapid temperature response and stability for the heat sealing process.

III. Interpretation of Core Technical Parameters

The main technical parameters of the BA-500Z are representative among similar equipment and are interpreted item by item below:

IV. Technical Advantages and Selection Considerations for Fully Automatic Models

Compared to semi-automatic models, fully automatic blis​ter sealing machines offer significant advantages in the following areas:

1. Reduced Manual Intervention
   Labor is only required for periodically replenishing cardboards and blis​ters. One operator can manage multiple machines simultaneously, significantly lowering labor costs. The BA-500Z offers simple operation training, and the single-operator-per-machine configuration provides high labor efficiency.

2. High Consistency
   Mechanical feeding and automatic heat sealing eliminate variations caused by manual operation, resulting in stable sealing quality, with defect rates potentially controlled below 1%.

3. Integrability
   It can be integrated upstream with blis​ter forming machines and product filling lines, and downstream with cartoning machines, forming a complete packaging production line.

However, attention must be paid during selection:

• Mold Customization: The BA-500Z includes one set of molds as standard, but different products require mold changes in actual production. Mold design and manufacturing precision directly impact sealing effectiveness and production efficiency.

• Material Compatibility: If using PET or biodegradable materials, verify if the equipment's temperature control range is sufficient and if the heating method needs adjustment.

• After-Sales and Technical Support: The BA-500Z comes with a one-year warranty and lifelong service. However, pay attention to the specific terms of the warranty and the cost structure for engineer site visits (airfare, accommodation, $150/day labor fee).

V. Common Faults and Troubleshooting Suggestions

Based on the structural characteristics of the BA-500Z and common industry issues, common faults and troubleshooting ideas are summarized below:

VI. Industry Development Trends

Current blister sealing equipment is evolving along the following technological directions:

1. Servo-driven and Intelligent
   Servo motors are gradually replacing pneumatic components, enabling more precise position control. HMI touch screens + PLC control systems are becoming standard, with some high-end models supporting MES system integration for real-time production data collection.

2. Expanded Material Compatibility
   With increasingly stringent environmental regulations, the use of recyclable or bio-based materials like PET, RPET, and PLA is increasing. Equipment needs a wider temperature control range and adaptability for heat sealing these materials.

3. Modular Design
   For instance, some high-end equipment utilizes modular structures, allowing functional units to be added or removed based on requirements, facilitating future upgrades and maintenance.

4. Energy Consumption Optimization
   Technologies like improved insulation for heating systems and energy regeneration in servo motors are gradually being adopted to reduce energy consumption per unit product.

VII. Conclusion

As a key piece of equipment in packaging production lines, the selection of a blister cardboard sealing machine requires comprehensive consideration of product specifications, capacity requirements, material characteristics, and budget. The BA-500Z, as a fully automatic double-cardboard heat sealing machine, offers valuable reference points regarding process completeness, automation level, and technical parameters. However, the final selection should still involve practical testing with the specific product and technical evaluation with the supplier.

The stable operation of the equipment depends not only on the machine itself but also on reasonable process parameter settings, standardized daily maintenance, and operator proficiency. It is recommended to fully utilize the training resources provided by the supplier after equipment procurement and establish Standard Operating Procedures (SOP) to maximize the equipment's effectiveness.

Frequently Asked Questions

Q: How can I determine if the heat sealing temperature on the blister sealing machine is appropriate?
A: This can be quantitatively assessed through a heat seal strength test. Cut a 25mm wide strip from the sealed sample along the seal edge. Perform a 180° peel test using a tensile testing machine and record the peel force value. Typically, a peel force of ≥10N/25mm is required. If the failure interface occurs within the cardboard fiber layer rather than at the heat seal interface, it indicates that the heat seal strength exceeds the cardboard's own strength, meaning the parameters are suitable.

Q: When changing products, which components need to be replaced?
A: Generally, the lower mold (holding the blister) and the upper heating plate (or pressure plate) need to be replaced. If the blister depth changes significantly, the heating plate height and limit switch positions may also need adjustment. If the cardboard size changes, the positioning guides on the feeding mechanism must be adjusted accordingly. The BA-500Z comes with one set of molds as standard; additional molds need to be custom-ordered.

Q: What are the environmental requirements for the equipment?
A: The recommended ambient temperature is 10-35°C, with relative humidity ≤80%. Excessive dust should be avoided as it can affect sealing quality and the lifespan of electrical components. The compressed air supply must be dried and filtered to prevent moisture from entering pneumatic components.
